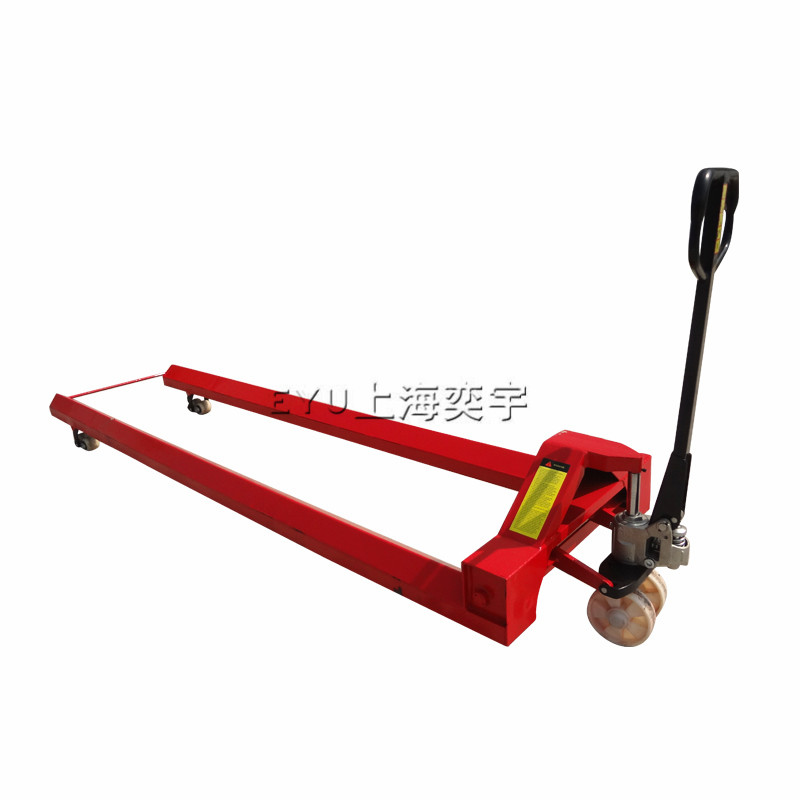

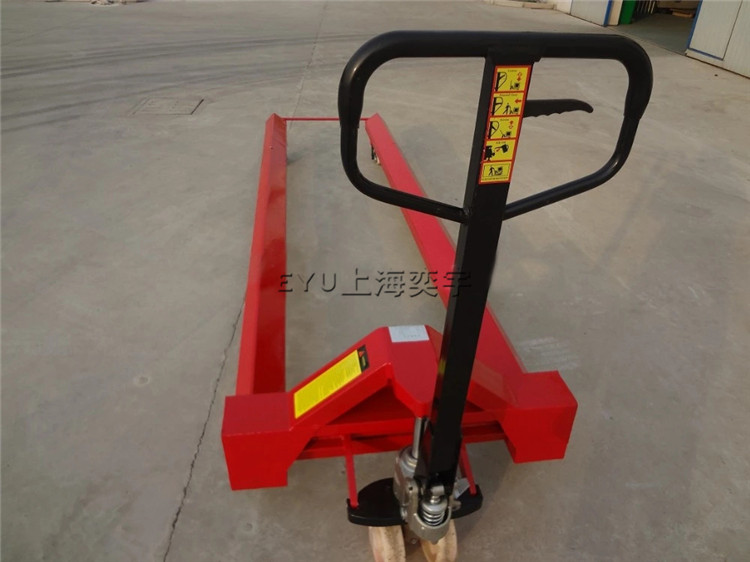

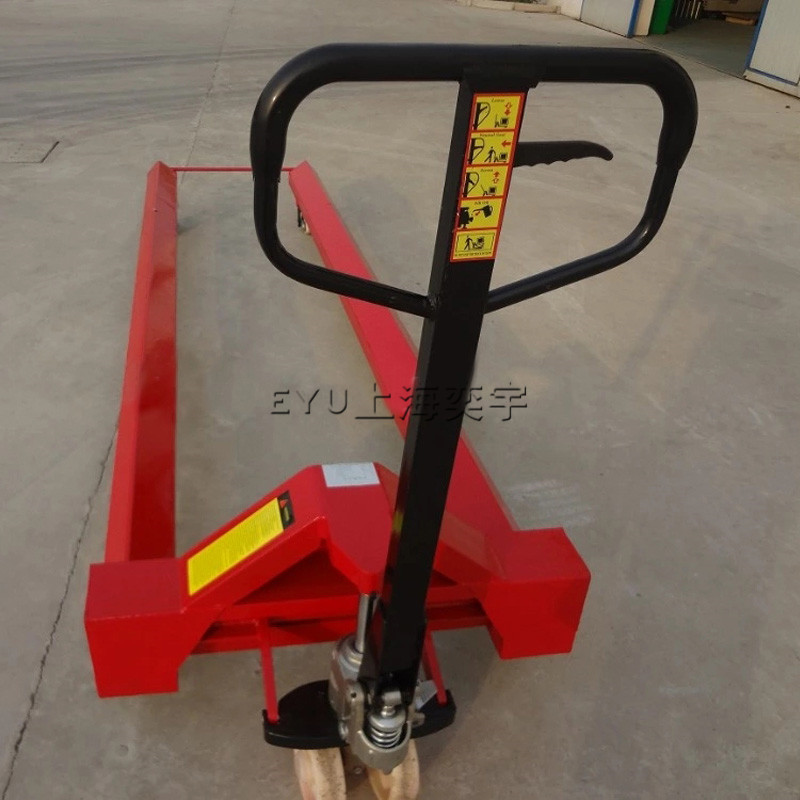

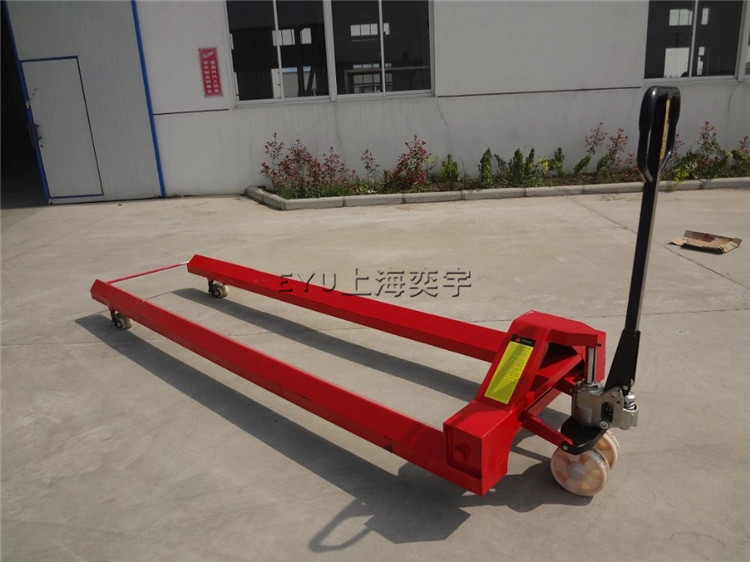

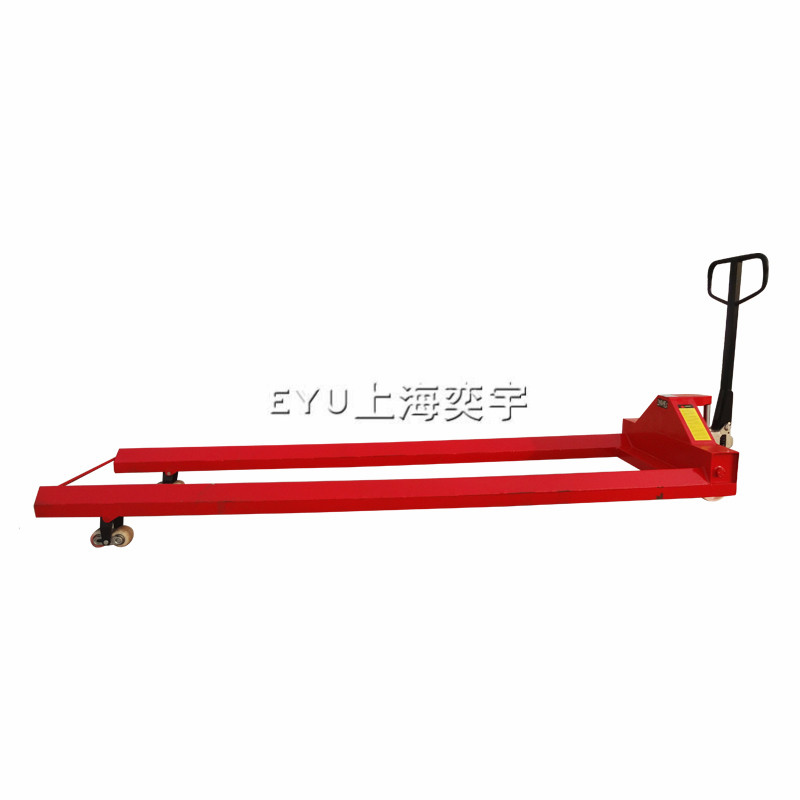

1.加长型手动纱辊经轴运输车在货叉的末端加装连接杆,预防纱辊较重或直径较大时货叉变型导致货物掉落,可拆卸,操作方便.
2.三角形货叉内侧有圆弧度,有效地保护圆形物的表面不受挤压变形.
3.主要运动部位装配有耐磨导向环,小体积液压装置，操作简单，使用方便.
4.强钢板制造,工艺精湛,油漆美观,内在使用寿命长.
5.加长型手动纱辊经轴运输车是仓库车间常用的搬运工具,大大提高工作效率.
6.符合欧州EN7515标准. 可据客户不同直径和长度订制.
产品参数
|
型 号 Model |
CBY400-Z |
CBY800-Z |
CBY1200-Z |
CBY1600-Z |
CBY2000-Z |
|
订 货 号Order Number |
5.10001 |
5.10002 |
5.10003 |
5.10004 |
5.10005 |
|
额定载重 Capacity (kg) |
400 |
800 |
1200 |
1600 |
2000 |
|
起升高度Fork lift height(mm) |
115 |
115 |
115 |
115 |
115 |
|
货叉最低Fork min height (mm) |
145 |
145 |
145 |
155 |
155 |
|
货叉最高Fork max.height(mm) |
260 |
260 |
260 |
270 |
270 |
|
货叉单宽Fork width (mm) |
180 |
180 |
180 |
180 |
180 |
|
货叉外宽Fork over width(mm) |
1000 |
900 |
800 |
600 |
600 |
|
货叉长度Fork length (mm) |
2000 |
1800 |
1600 |
1400 |
1300 |
|
车身重量Weight (Kg) |
89 |
105 |
116 |
127 |
159 |
|
外形尺寸Over size(mm)L*W*H |
2400*1000*1370 |
2200*900*1370 |
2000*800*1370 |
1800*600*1370 |
1700*600*1370 |
|
通道要求 Channel request(mm) |
2500转弯Turn |
2300转弯Turn |
2100转弯Turn |
1900转弯Turn |
1800转弯Turn |
|
行走通道Forward and Back request |
1100mm |
1000mm |
900mm |
700mm |
700mm |
|
后轮 Real wheels (mm) |
2*¢180*50 |
||||
|
前轮Front wheels (mm) |
4*¢80*70 |
||||
1.Added the connecting link at the end of the forks, prevent the materials fall when load heavier or larger rolls.
2.There is a circular arc in the triangle forks inner, protect the surface of the circle is not affected by extrusion deformation effectively.
3.Assemble a wear resistant guide ring, Small volume hydraulic device, operation is simple and easy to use
4.Super steel manufacturing, exquisite workmanship, paint and beautiful, inner long service lift
5.This is a common handling equipments for warehouse using, greatly improved work efficiency.
6.Comply with European standards EN7515, Can be customized according to customer different diameter and length
